The system time of the computer running Avio Service can now be made available as channels on the Avio network and used by other Avio resources. It is not necessary to use a complex SNTP script that requires an Internet/network connection.
This is how you enable the system time for Avio:
Click the Avio Services icon and select Functional Groups. In the dialog popping up enable this functional group by clicking System time following which it is then listed in yellow at the top. Finish by clicking Apply Changes.

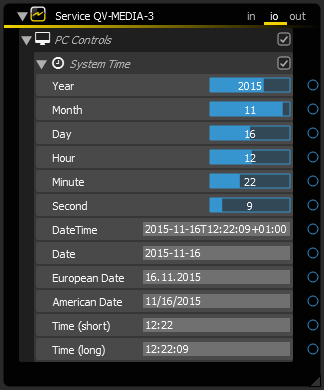

When you start Avio Manager port System Time will be listed in your computer’s Avio Service in port PC Controls. Upon opening port System Time the channels with the date and time information are listed and can be linked up with other channels.
Please note the following:
If channel information is not visible, check the box next to Show Values or in line System Time.
The first six channels are numeric values that can be used in scripts, for example.
Channels DateTime and Date are in a format which is based on ISO 8601. Moreover, the date is also available in European and American format.
See also
Connecting and editing channels
